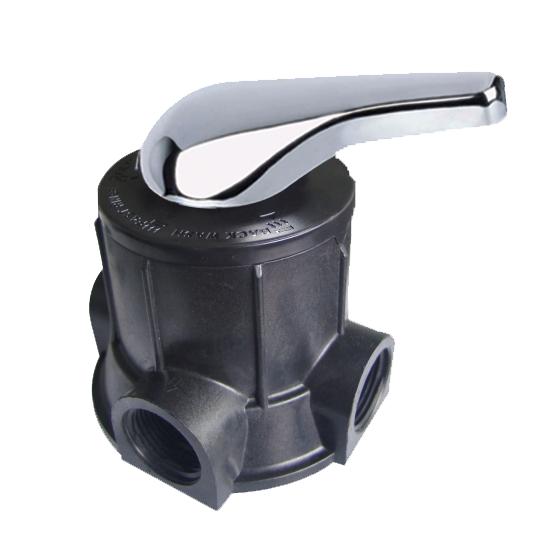

1" Manual Filter Valve 51104(F56A)
Model No : |
51104(F56A) |
Type : |
Filter |
Mode of Operation : |
Manual |
Water Capacity : |
4000Lph |
Size of Inlet : |
1"F |
Size of Outlet: |
1"F |
Size of Drain: |
1"F |
T &B Strainer Size |
3/4" |
Size of Base: |
2.5"-8 NPSM |
Size of Riser pipe: |
1.05" OD |
ORG Part ld |
806 |
Prduct Description
- Top face, Top mounted with metal handle manual control filter valve is placed to perform the various functions like service, fast rinse and backwash.
- It can also be mounted on side by using the side mount connector.
- It can be operated under pressure without leakage.
- Small rotation angle with smooth movement.
- Applicable for sand filter, carbon filter and swimming pool filter etc.

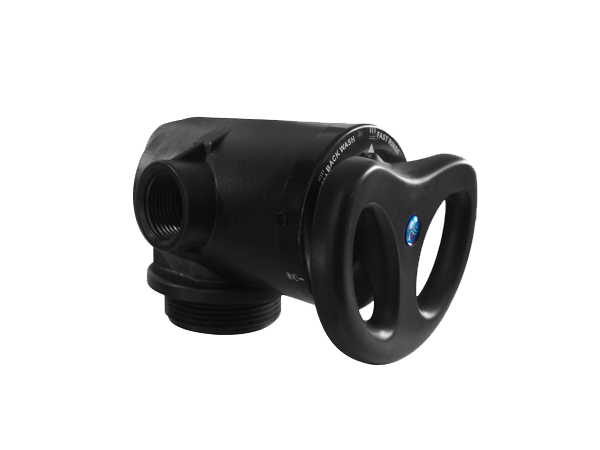

1" Manual Filter Valve 51204(F56AC)
Model No : |
51204(F56AC) |
Type : |
Filter |
Mode of Operation : |
Manual |
Water Capacity : |
4000Lph |
Size of Inlet : |
1"F |
Size of Outlet: |
1"F |
Size of Drain: |
1"F |
T &B Strainer Size |
3/4" |
Size of Base: |
2.5"-8 NPSM |
Size of Riser pipe: |
1.05" OD |
ORG Part ld |
249 |
Prduct Description
- Front face, Top mounted manual control filter valve is placed to perform the various functionslike service, fast rinse and backwash.
- It can be operated under pressure without leakage.
- Small rotation angle with smooth movement.
- Applicable for sand filter, carbon filter and swimming pool filter etc.

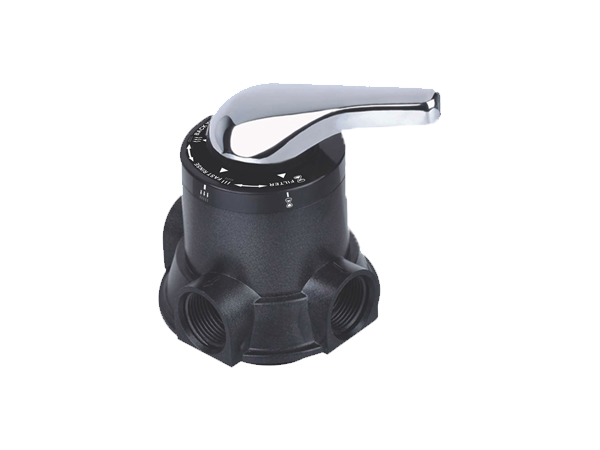

1" Manual Filter Valve 51106(F56F)
Model No : |
51106(F56F) |
Type : |
Filter |
Mode of Operation : |
Manual |
Water Capacity : |
6000Lph |
Size of Inlet : |
1"F |
Size of Outlet: |
1"F |
Size of Drain: |
1"F |
T &B Strainer Size |
3/4" |
Size of Base: |
2.5"-8 NPSM |
Size of Riser pipe: |
1.05" OD |
ORG Part ld |
712 |
Prduct Description
- Front face, Top mounted manual control filter valve is placed to perform the various functionslike service, fast rinse and backwash.
- It can be operated under pressure without leakage.
- Small rotation angle with smooth movement.
- Applicable for sand filter, carbon filter and swimming pool filter etc.
1" Automatic Filter Valve 53504(F67C1)
Model No : |
53504(F67C1) |
Type : |
Filter |
Mode of Operation : |
Automatic |
Water Capacity : |
4000Lph |
Size of Inlet : |
1"F |
Size of Outlet: |
1"F |
Size of Drain: |
1"F |
T &B Strainer Size |
3/4" |
Size of Base |
2.5"-8NPSM |
Size of Riser pipe |
1.05"OD |
ORG Part ld |
250 |
Prduct Description
- Top mounted micro processed automatic control filter valve is placed to perform the various functions like service, fast rinse and backwash.
- Equipped with LED Display and facility like rinsing frequency, remote handling connector, interlock functions, signal output connector.
- User friendly programming and operation, Key board locking functions to prevent misuse.
- Data will be saved and safe at time of power cut.
- It can be operated under pressure without leakage.
- Applicable for sand filter, carbon filter and swimming pool filter etc.
